Z8 Series ZigBee Devices
The Z8 series provides reliable wireless communication for industrial telemetry applications based on the ZigBee protocol. The mesh networking architecture ensures robust data transmission even in challenging RF environments.
Z8914 — ZigBee Terminal
The Z8914 is a ZigBee terminal device for connecting field sensors and actuators to the wireless mesh network. It provides digital and analog I/O with low power consumption.

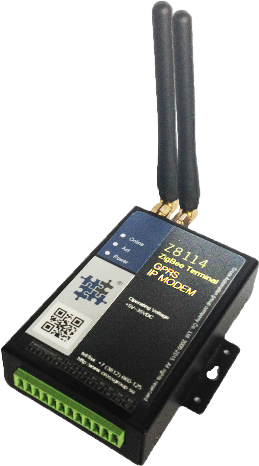

Z8114 — ZigBee + GPRS IP Modem
The Z8114 combines ZigBee mesh networking with GPRS cellular connectivity, functioning as a gateway between the local ZigBee network and the central control system via IP.
Applications
- Oilfield telemetry and monitoring
- Well pad automation
- Pipeline monitoring
- Energy metering data collection
Technical Specifications
| Feature | Z8914 Terminal | Z8114 Modem |
|---|---|---|
| Protocol | ZigBee PRO | ZigBee PRO + GPRS |
| Network | Mesh, router | Mesh + Gateway to IP |
| Range | Up to 1.5 km (line of sight) | Up to 1.5 km + cellular |
| Power | 12-24 VDC / Battery | 12-24 VDC |
| Operating temp | -40 to +85°C | -40 to +70°C |
Request a Quote
* Custom manufacturing according to your technical specifications is available.
