Purpose
The pressure chamber is designed for leak testing of TMS submersible blocks from various manufacturers using the external pressure method in accordance with GOST 24054-86 and test methodology Qf per GOST 28210-89. The block is fully submerged in the test vessel, pressure of 60 MPa is created and maintained for at least 10 minutes.
Test Process

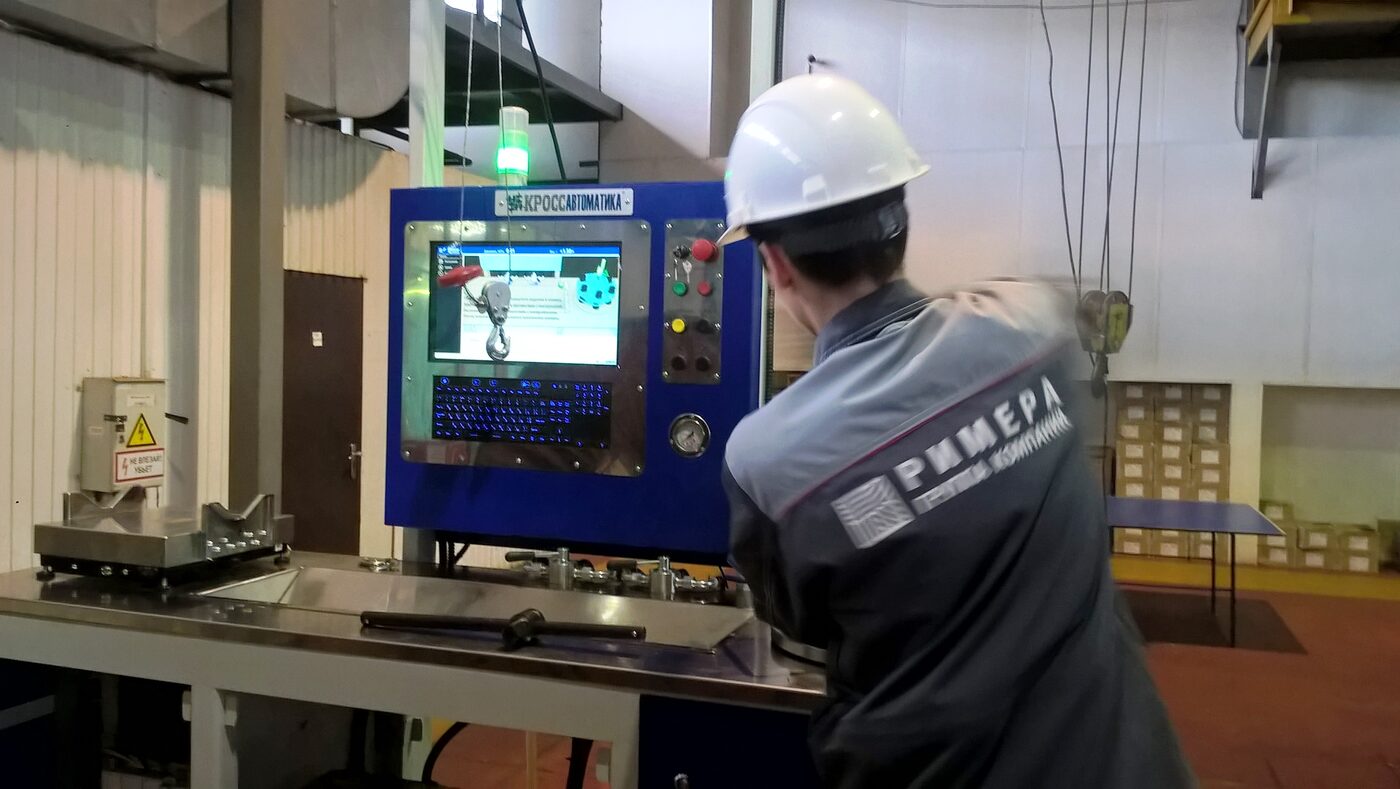

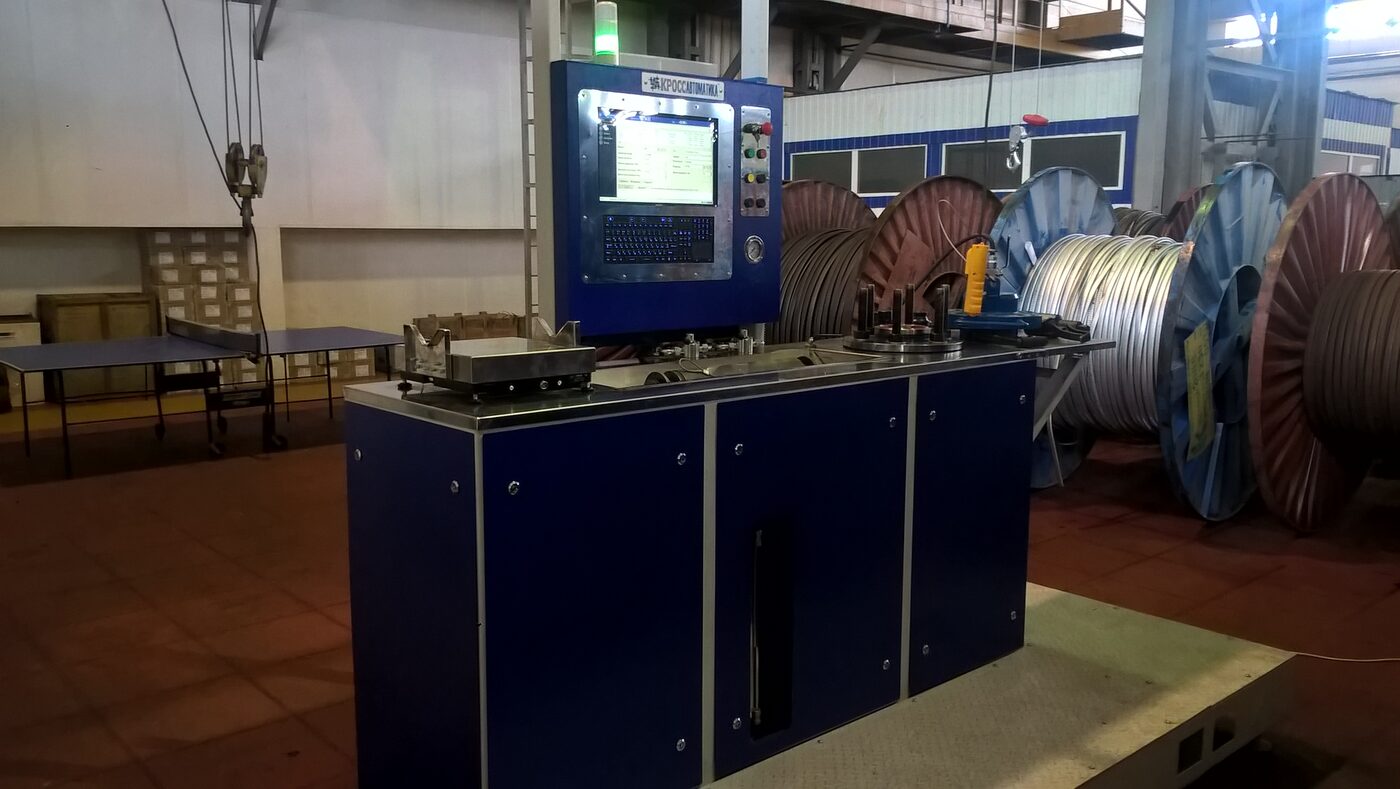

The submersible block is placed in the test vessel, which is then filled with mineral oil. An automated pressure pump creates the required pressure. After the specified hold time, the vessel is depressurized through the drain valve. The product is extracted, wiped, and weighed.
Leak detection is performed by the weight difference method. Precision scales included in the delivery are connected to the control system — weight values before and after pressure testing are recorded automatically, ensuring objective control and minimizing human error.
Key Features
- Automatic test cycle with protocol generation
- Lifting and rotating device for easy loading/unloading (80 kg capacity)
- Test protocols stored in built-in database
- Paper printout or network transfer available
- Industrial-grade components for 24/7 operation
Delivery Options
Custom manufacturing according to your technical specifications is available, considering the specified parameters and specific requirements.
Technical Specifications
| Parameter | Value |
|---|---|
| Test medium | Mineral oil VMGZ TU 38 101479-00 |
| Hydraulic system fluid | Mineral oil VMGZ TU 38 101479-00 |
| Maximum working pressure (pump safety valve) | 65 MPa |
| Test vessel fill time (boost pump) | 5 min |
| Test time per product | From 10 min |
| Maximum allowable pressure in test chamber | 70 MPa |
| Maximum product dimensions | Diameter 117 mm, length 1240 mm, weight 50 kg |
| Lifting device capacity | 80 kg |
| Product orientation during test | Vertical |
| Loading/unloading time | 5 min |
| Productivity | 40 blocks per day |
* Custom manufacturing according to your technical specifications is available, considering the specified parameters and specific requirements.
