Purpose
The automated stand is designed for acceptance testing of fittings under serial production conditions. Three types of tests are performed: leak tightness (differential manometric method), strength, and burst (up to 60 MPa).
Configuration
The stand features two independent test circuits:

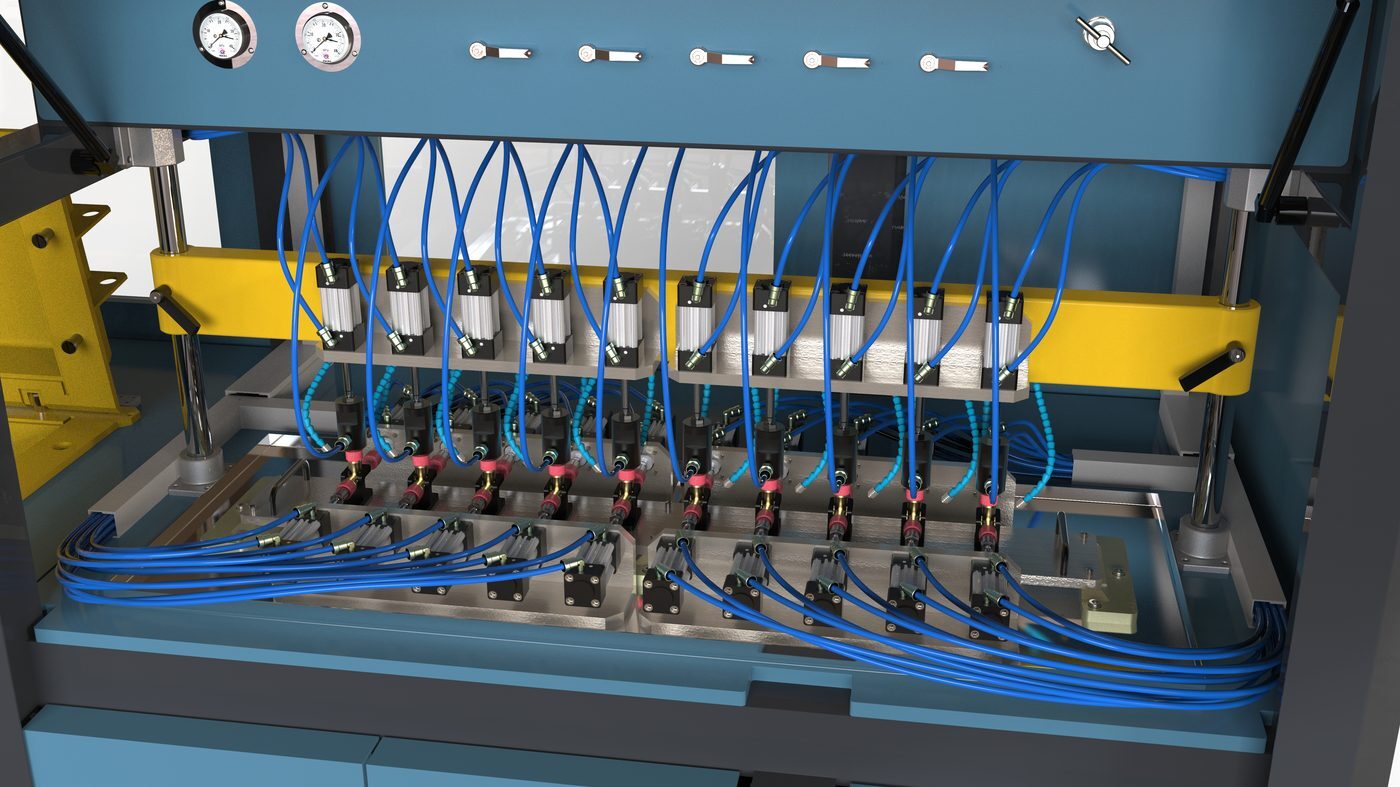

- Pneumatic circuit: for leak tightness testing of up to 10 fittings simultaneously (0.6–1.0 MPa)

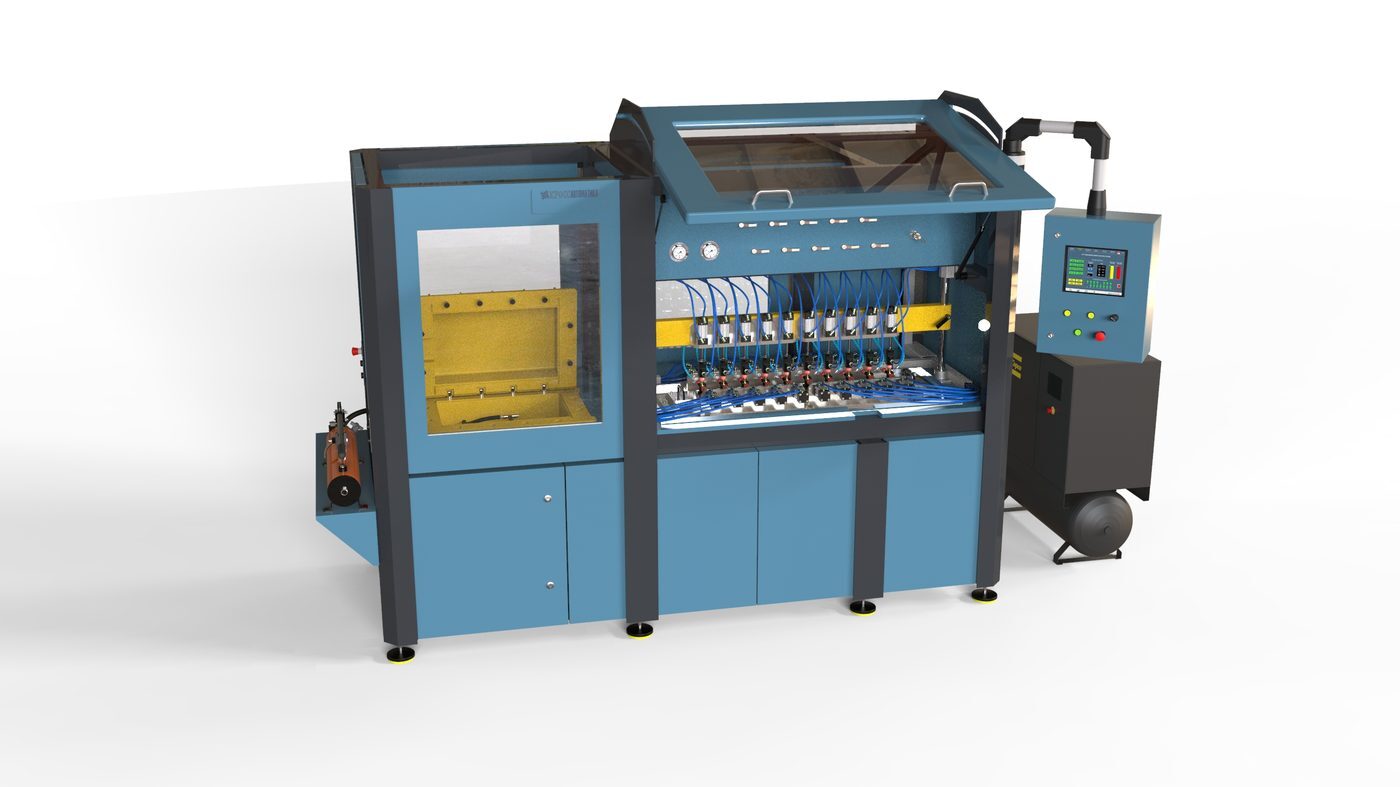

- Hydraulic circuit: for strength and burst testing in an armored chamber (1–60 MPa)
Key Features
- 33 fitting types supported with quick-change tooling
- Test cycle time: ~28–30 seconds
- Full automation with Cross-Start / Cross-Test software
- Automatic test protocol generation and archiving
- Designed for 24/7 industrial operation
- Service life: 10+ years
Delivery Options
Custom manufacturing according to your technical specifications is available, considering the specified parameters and specific requirements.
Technical Specifications
| Parameter | Value |
|---|---|
| Test types | Leak tightness, strength, burst |
| Pressure (pneumatic) | 0.6–1.0 MPa |
| Pressure (hydraulic) | 1–60 MPa |
| Simultaneous testing (pneumatic) | 1–10 pcs. |
| Simultaneous testing (hydraulic) | 1 pc. |
| Pressure accuracy | ±2.5% |
| Cycle time | ~28–30 sec |
| Fitting types supported | 33 types |
| Power supply | 3×380 V, 50 Hz |
| Power consumption | Up to 5 kW |
| Dimensions (L×W×H) | ~2500×1200×2200 mm |
| Weight | ~1400 kg |
| Operating mode | 24/7 |
| Service life | 10+ years |
Request a Quote
* Custom manufacturing according to your technical specifications is available, considering the specified parameters and specific requirements.
