Purpose
The stand is designed for cyclic endurance testing of hydraulic shock absorbers and shock absorber struts. It performs sinusoidal compression-tension cycles with controlled parameters, simulating real-world operating conditions over the product's lifetime.
Design

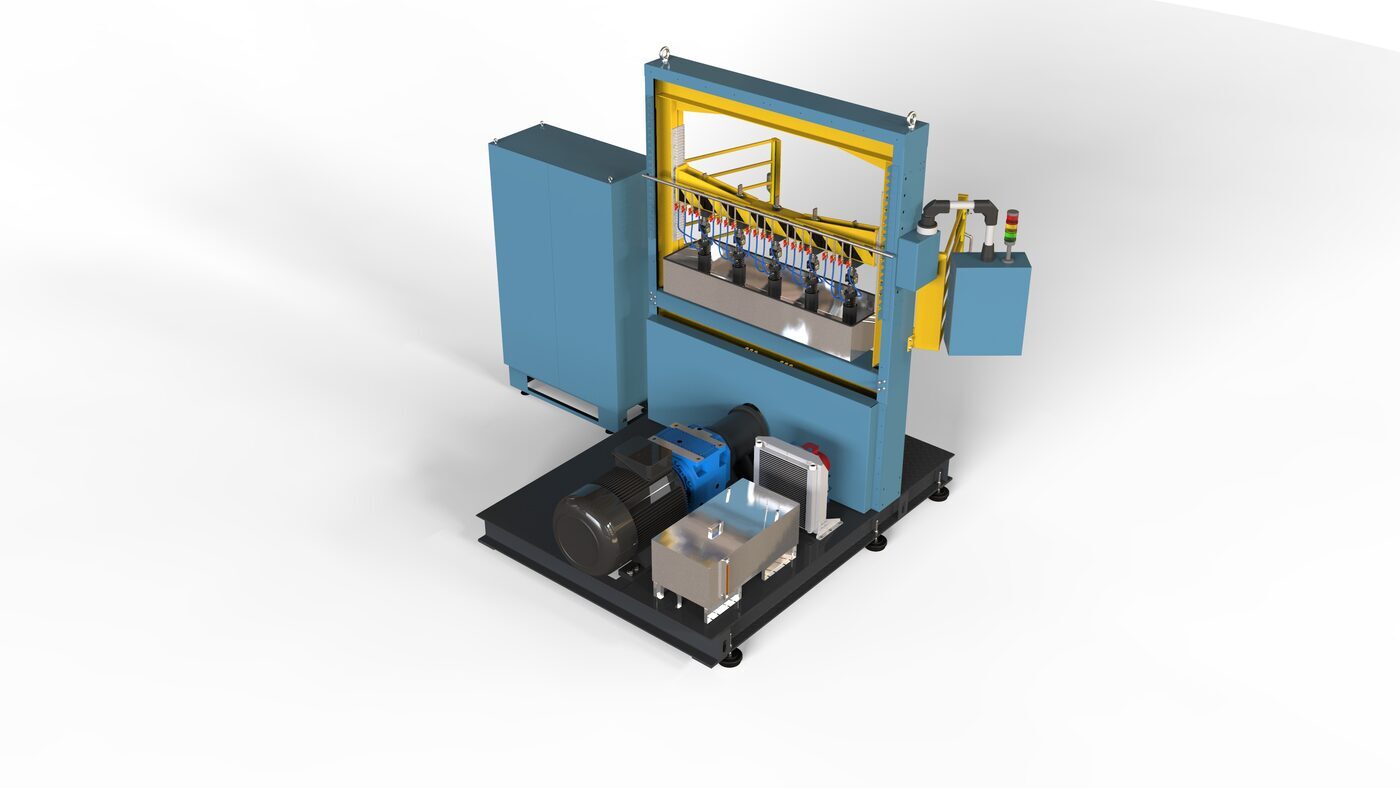

The stand features an electro-mechanical crank-and-connecting-rod drive, ensuring high reliability and low maintenance requirements. Up to 5 products can be tested simultaneously, each with up to 24 kN of force. The built-in closed-loop water cooling system prevents overheating during extended test runs.
Key Features
- 5 independent test positions for parallel testing
- Adjustable stroke: 30–100 mm
- Speed range: 0.052–0.52 m/s
- Water cooling with closed circuit
- 15-year design life at 24/7 operation
- Compliant with GOST 15150-69 (category UKhL4)
Delivery Options
Custom manufacturing according to your technical specifications is available, considering the specified parameters and specific requirements.
Technical Specifications
| Parameter | Value |
|---|---|
| Test products | Hydraulic shock absorbers and struts |
| Test method | Cyclic compression-tension, sinusoidal |
| Test positions | Up to 5 simultaneously |
| Total force | ≥120 kN (24 kN per sample) |
| Speed range | 0.052–0.52 m/s |
| Stroke | 30–100 mm (±1 mm) |
| Speed accuracy | ±5% |
| Drive type | Electro-mechanical, crank-and-connecting-rod |
| Cooling | Water, closed circuit |
| Design service life | 15 years |
| Climate category | UKhL4, GOST 15150-69 |
* Custom manufacturing according to your technical specifications is available, considering the specified parameters and specific requirements.
