Simulating Extreme Conditions

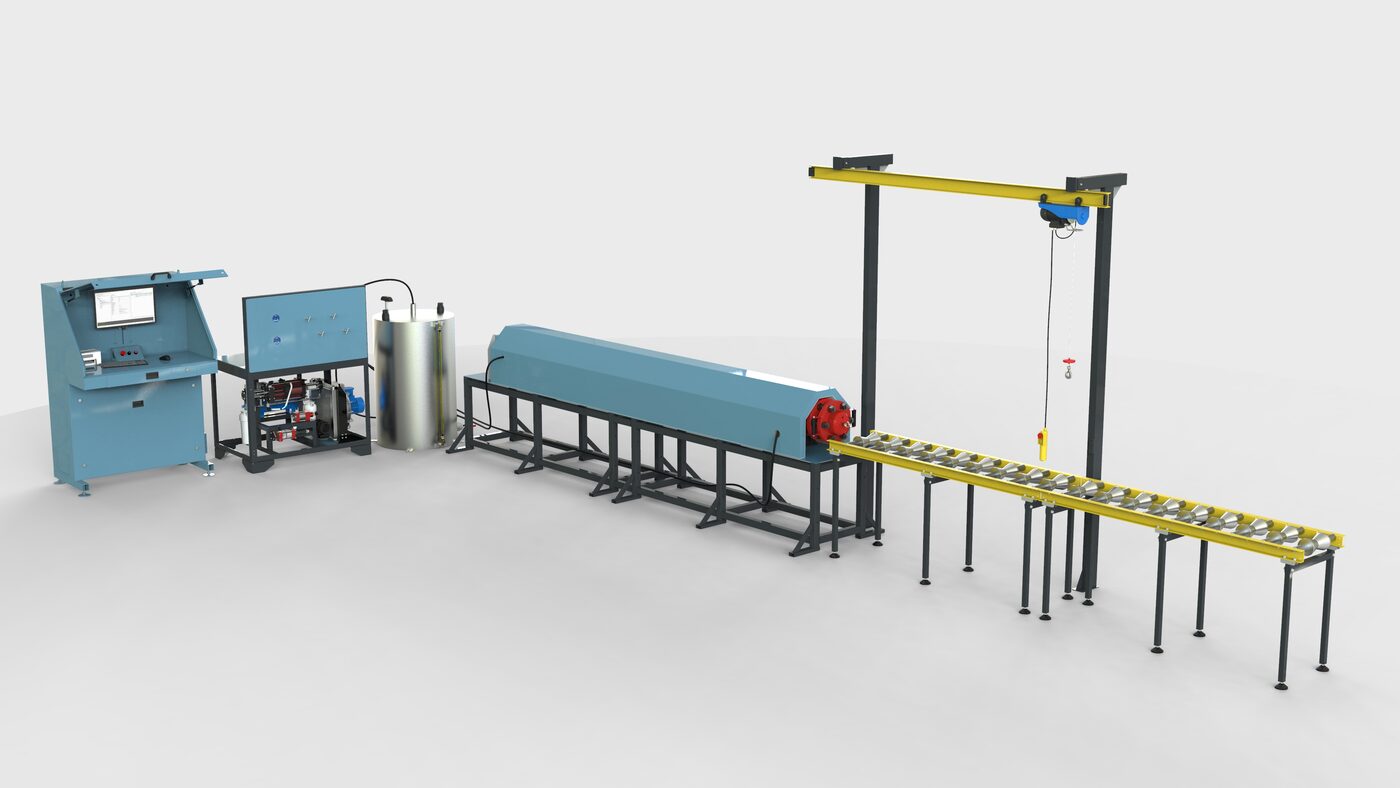

The automated test stand recreates downhole conditions for comprehensive testing of submersible telemetry systems and other downhole equipment. The stand provides fully automated test cycles with Cross-Start software compliance with industry standards.
Key Features
- Industrial PC with Cross-Start software
- Full test automation with protocol generation
- Safety interlocks and emergency systems
- Configurable for various product types
Technical Specifications
| Parameter | Value / Range |
|---|---|
| Working pressure | Up to 150 MPa (configurable) |
| Working temperature | Ambient to +150°C |
| Test products | Diameter up to 190 mm, length up to 4000 mm |
| Working medium | Water, oil (PMS-20, etc.), other fluids |
| Test mode | Automatic, semi-automatic |
| Pressure accuracy | ≤0.25% |
| Temperature accuracy | ≤0.5% |
| Control system | Industrial PC, Cross-Start software |
| Service life | 10 years |
| Warranty | 12 months |
Request a Quote
* Custom manufacturing according to your technical specifications is available, considering the specified parameters and specific requirements.
