Purpose
The stand is designed for oil filling, running-in, and acceptance testing of ESP motor protectors in accordance with GOST 30195-94. Features horizontal mounting/loading position with vertical testing orientation. Meets requirements of major oil companies.
Design

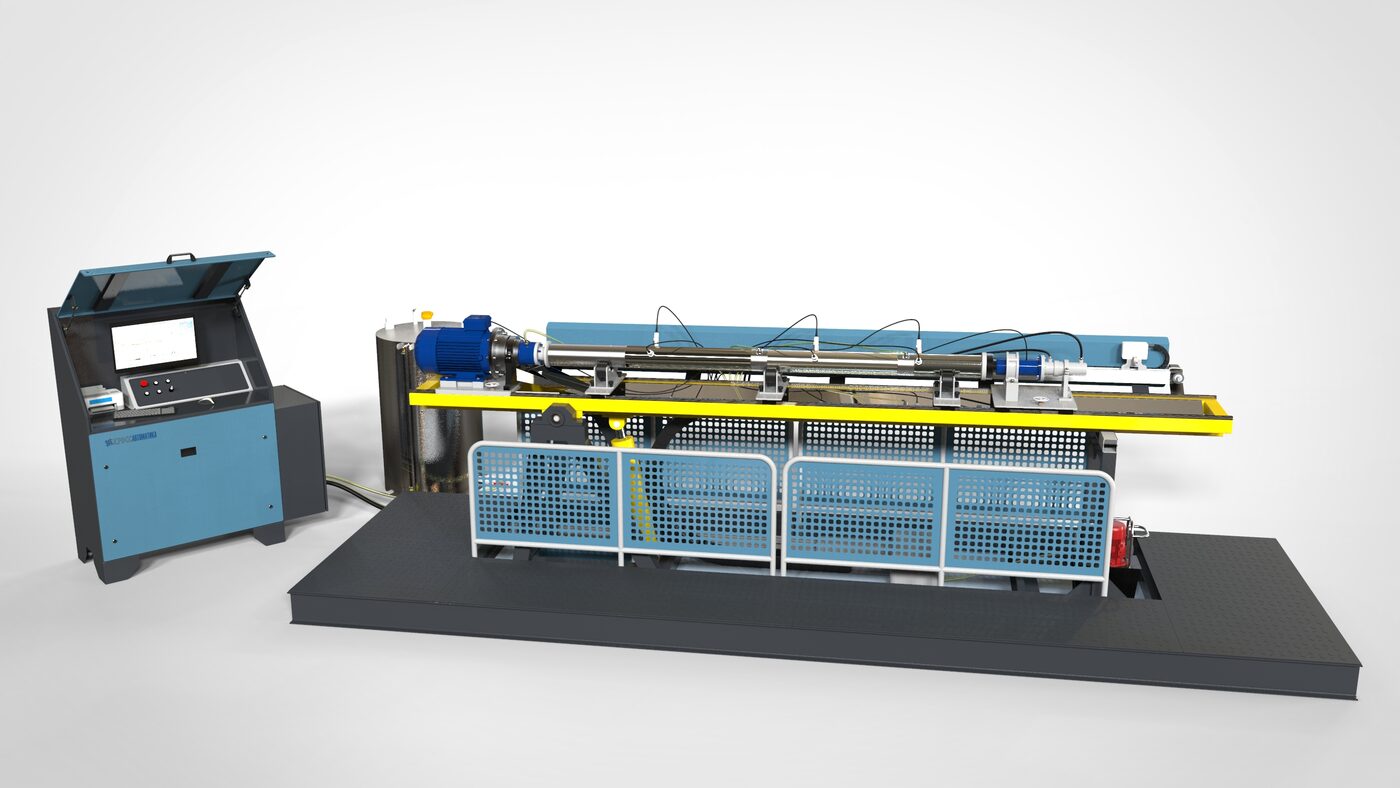

The stand features a hydraulic boom rotation system for moving the protector from horizontal loading position to vertical testing position. This configuration reduces ceiling height requirements compared to fully vertical designs while maintaining test accuracy.
Technical Specifications
| Parameter | Value |
|---|---|
| Mounting position | Horizontal |
| Test position | Vertical |
| Number of test positions | 1 |
| Protector diameter range | 69–172 mm |
| Maximum protector length | Up to 3.7 m (including tandem assemblies) |
| Protector weight | Up to 280 kg |
| Test fluid | Dielectric oil |
| Axial load on shaft | Up to 37 kN |
| Drive speed | 0–6000 RPM, reversible |
| Test modes | Automatic, semi-automatic |
| Temperature sensors | 3 contact or 1 pyrometric |
| Vibration sensors | 6 |
| Power supply | 3×380 V, 50 Hz |
| Power consumption | 9 kW |
| Boom rotation | Hydraulic |
| Height from floor | 5500 mm |
| Width | 1800 mm |
| Length | 6000 mm |
| Weight (without test product) | 1800 kg |
| Service life | 10 years |
| Warranty | 24 months from commissioning |
Request a Quote
* Custom manufacturing according to your technical specifications is available, considering the specified parameters and specific requirements.
